Mansfield College

Mansfield College - (1 of 1)



The main entrance is on Mansfield Road. There is also an alternative entrance on Mansfield Road. Both of these entrances are level. There is also accommodation in the Ablethorpe Building. There is level entry onto this site from Cowley Road and Dawson Street. The college also has accommodation on Regent Street and Union Street.  Access is managed either with keys or fobs.

The college has buildings which are a mix of different ages and styles. Some are more accessible than others. There is one accessible bedroom on staircase E. There are three accessible bedrooms in the Hands Building. The accessible bedrooms all have accessible bathrooms.

This table contains summary information about the building

On-site designated parking for Blue Badge holders 2
Public designated parking for Blue Badge holders within 200m No
Other nearby parking No
Main entrance Level
Alternative entrance Level
Wheelchair accessible toilets 4
Lift 4
Hearing support systems Yes
Google Maps
https://www.google.com/maps/embed?pb=!1m18!1m12!1m3!1d2469.652710065433!2d-1.2550635840680981!3d51.757673800193885!2m3!1f0!2f0!3f0!3m2!1i1024!2i768!4f13.1!3m3!1m2!1s0x4876c6abe065b7fb%3A0xbc83494af8f4a94a!2sMansfield%20College!5e0!3m2!1sen!2suk!4v1643878215620!5m2!1sen!2suk
University Map
//maps.ox.ac.uk/embed.html#/custom?ids=oxpoints:23232398&fullscreen
Floor plans

Expand All

There are two designated parking spaces in the parking area next to the main entrance. The spaces both have an upright sign.
Parking is agreed on a case by case basis. Students with specific parking needs should discuss these with the College before their arrival.

Please click on the thumbnails below to enlarge

Main Site

The main entrance is on Mansfield Road. There is also an alternative entrance on Mansfield Road. Both these entrances are level.

  • The main gates are closed at night and reopened early in the morning
  • To gain access at night the gate is unlocked using a key
  • The lock is 120 cm from the floor
  • There is a bell on the gate which is 115 cm from the floor
  • The porters are happy to assist anyone needing help to access the College

Alternative Entrance

  • This entrance on Mansfield Road is next to the guest room.
  • This is not usually open but can be used if needed

Ablethorpe Building

This site has two entrances. The Dawson Street entrance is not level.
Cowley Road Entrance

  • There is level entry from the footpath
  • The gate is powered and opens to 80 cm
  • The access control is 135 cm from the floor
  • The exit push button is 133 cm from the floor

Dawson Street Entrance

  • This gate is manual
  • The gate has a threshold 18 cm high
  • The gate opens to 93 cm
  • The lock is 110 cm from the floor
  • The access control is 120 cm from the floor
  • The bells next to the gate are 113 cm to 137 cm from the floor

Please click on the Thumbnails below to enlarge

Mansfield College has one Porters' Lodge which is on the main site next to the main entrance.

  • The Porters' Lodge can only be reached by using stairs
  • The lodge is staffed 24 hours a day
  • Staff are happy to come out of the lodge to assist anyone unable to manage steps

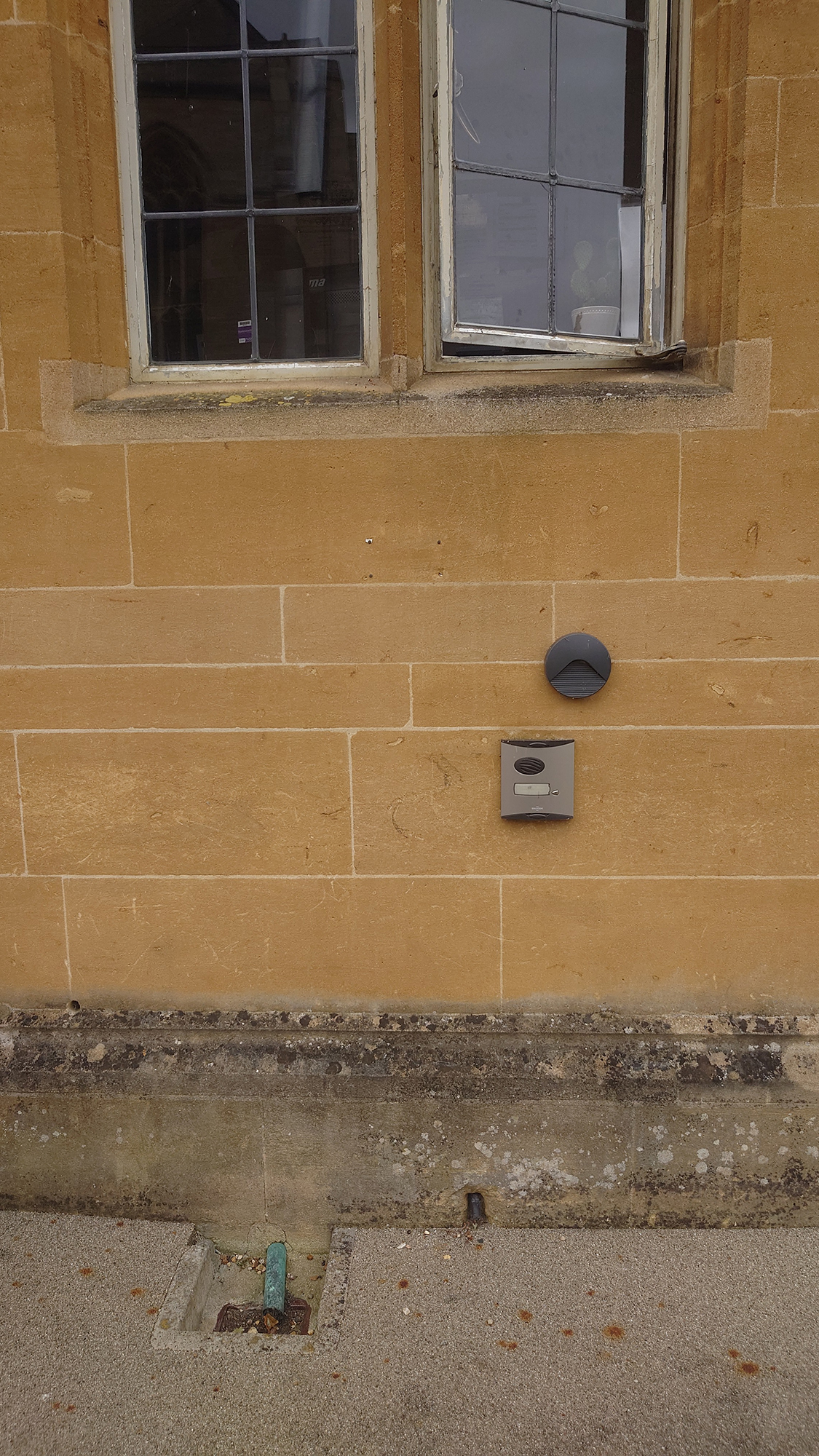

  • The bell outside the Lodge is 120 cm from the floor
  • The double doors into the Lodge each open to 58 cm
  • Inside the Lodge there are three steps up to the desk.
  • The Porters’ desk is 92 cm above the top step

Pigeonholes

  • The pigeonholes are at varying heights.
  • The Porters will hold the post for anyone unable to access the Lodge

Please click on the thumbnails below to enlarge

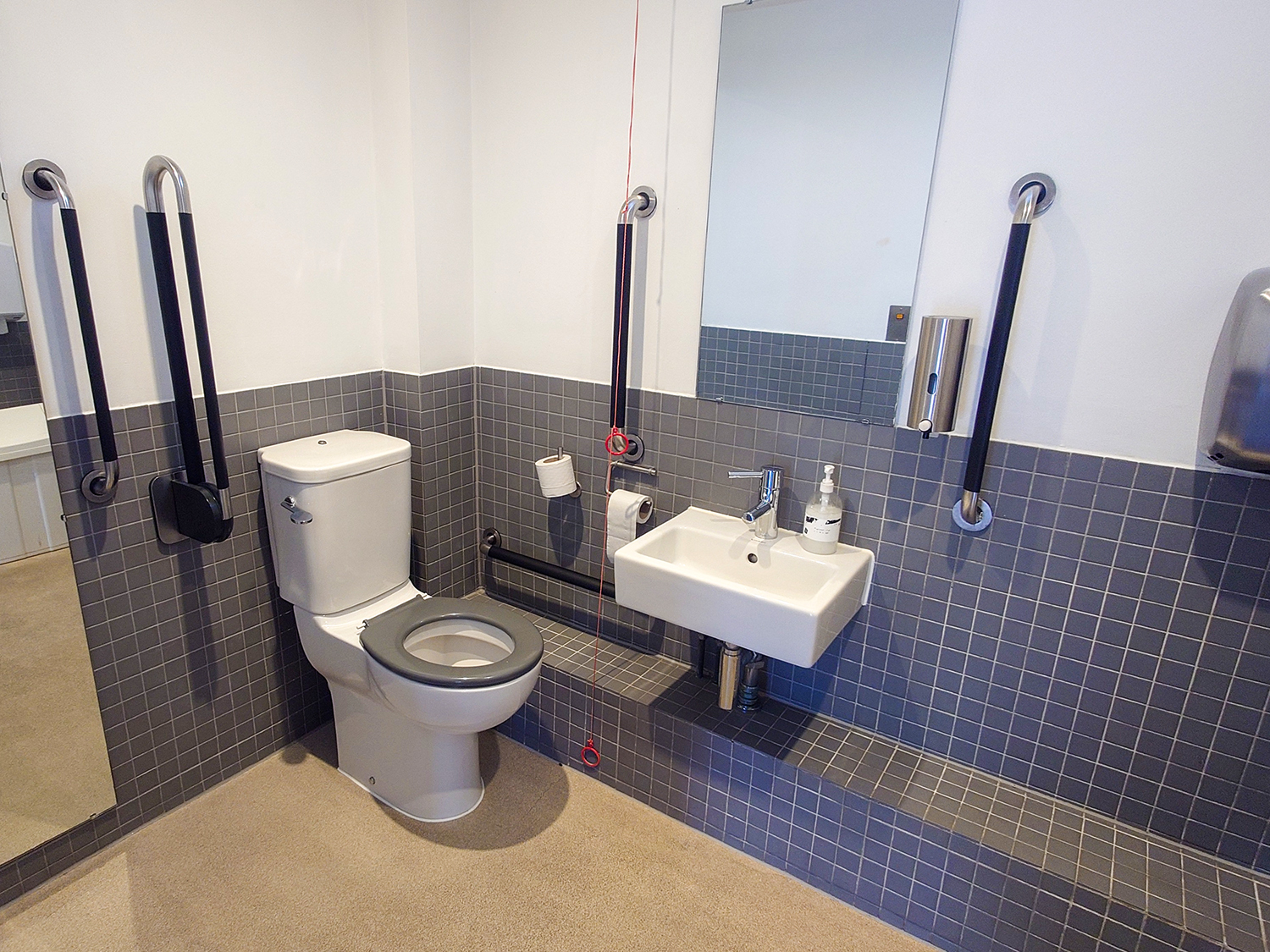

Mansfield College has three accessible toilets. There is also an accessible toilet on the lower ground floor of the Bonavero Institute of Human Rights. As the toilets were built at different times they do not all meet current accessibility standards. This means that some of them do not have features such as high contrast between the rails and the walls, easy-to-use door handles and easy reach sinks.

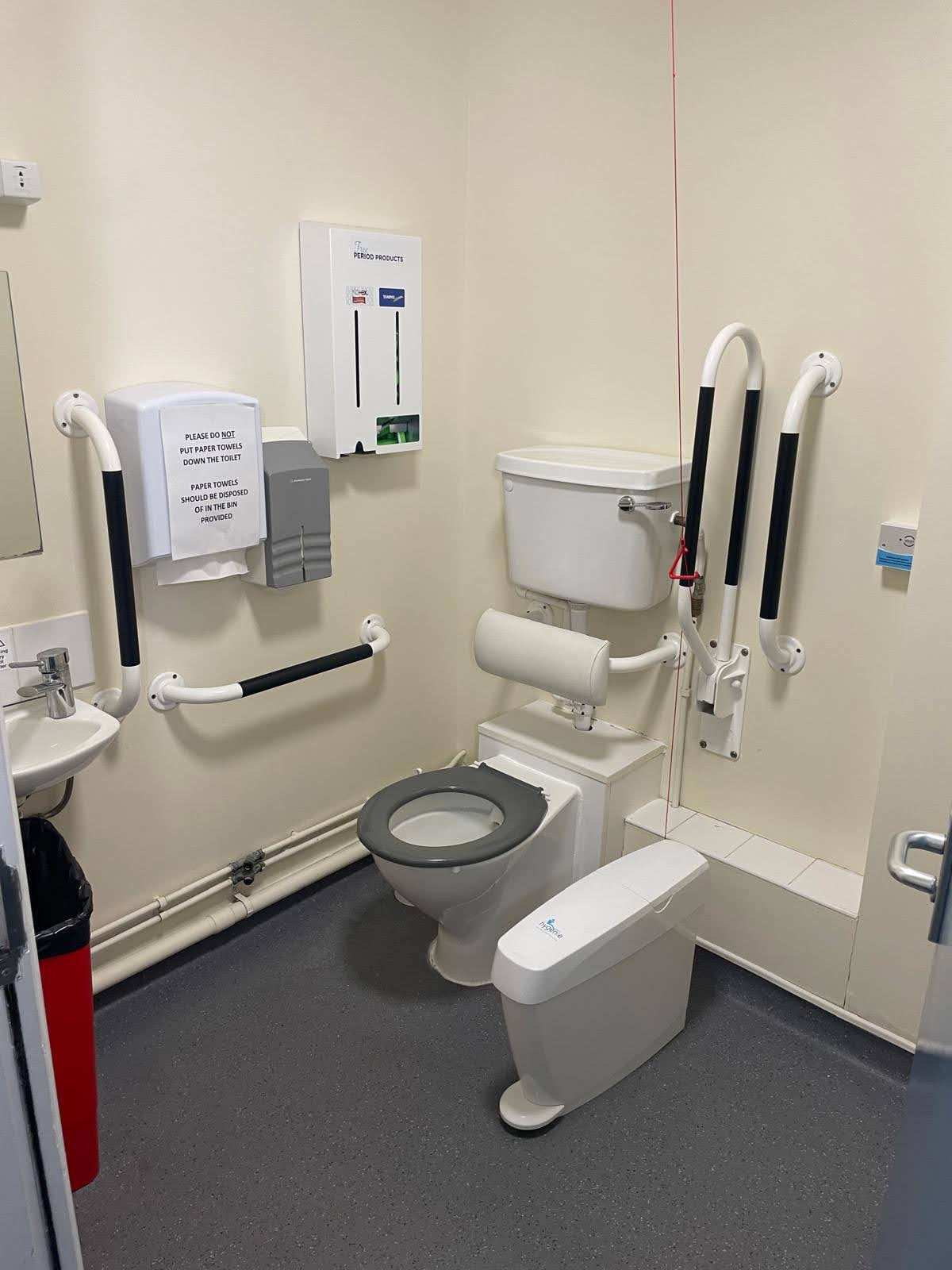

All of the accessible bedrooms have accessible bathrooms.

The dimensions of the accessible toilets are:

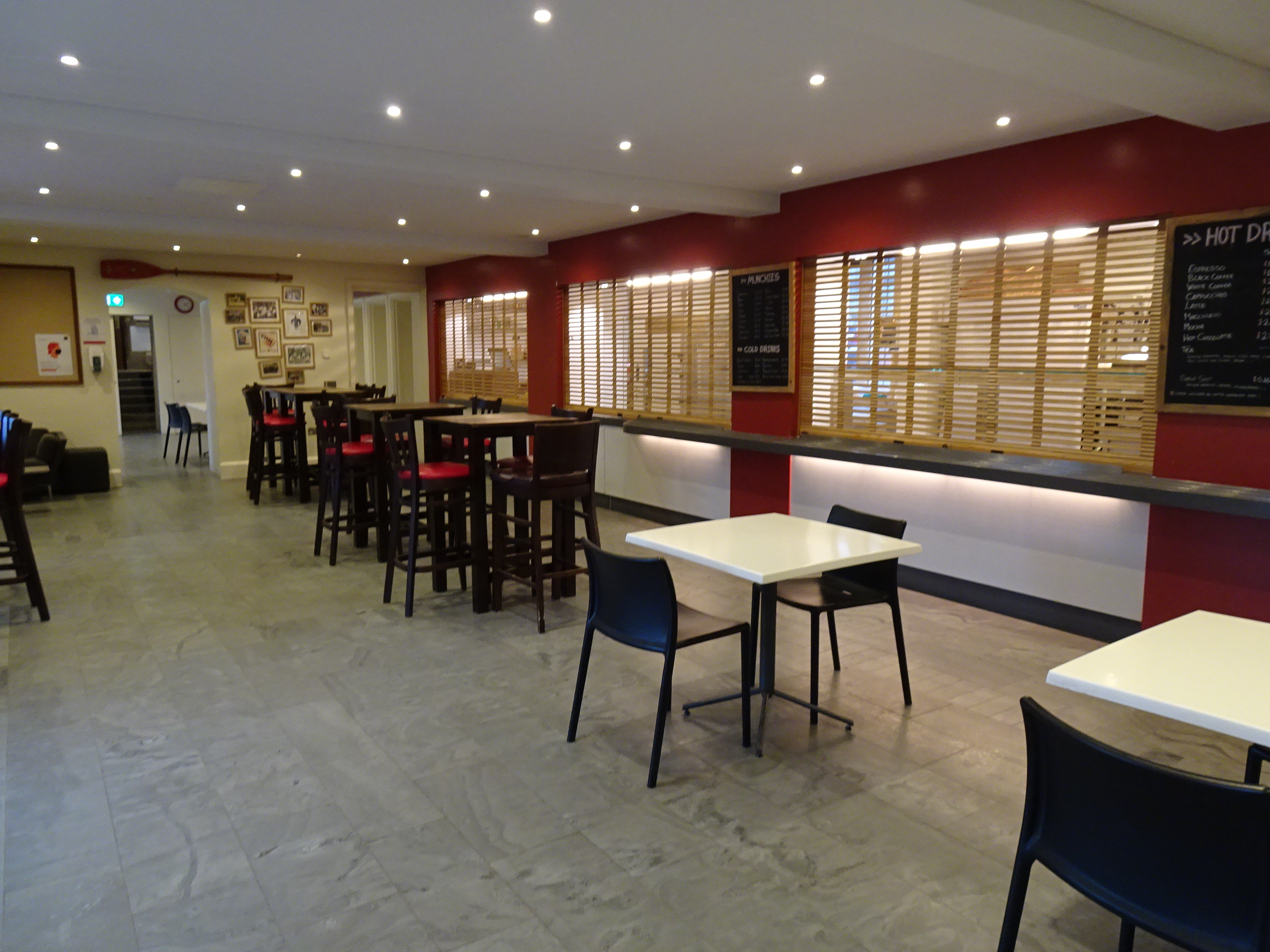

  • Crypt Café - 161 cm x 240 cm
  • Garden Building -157 cm x 305 cm
  • Ablethorpe Building - 168 cm x 198 cm

There are locations without accessible toilets such as:

  • Library
  • JCR
  • MCR
  • Old bar
  • Old Hall
  • MB 1
  • Tower Room

Please click on the thumbnails below to enlarge

The college has four lifts. There is one passenger lift and three platform lifts.

Hands Building - Passenger Lift

  • This passenger lift gives access to all floors in the building.
  • The lift call buttons are between 92 cm and 100 cm high
  • The lift is 145 cm deep and 113 cm wide
  • The door opens to 90 cm
  • The lift buttons are between 86 cm and 115 cm from floor
  • The lift buttons are backlit and tactile
  • The lift car has handrails on the left wall and in the left corner (as you enter)
  • There is a visual indicator of the floor numbers
  • The lift is well lit
  • The lift floor is non-reflective
  • The lift walls have a reflective surface
  • There is a mirror on the end wall

Garden Building - Platform Lift

  • This lift gives access to all floors in the building
  • The lift key is 103 cm from the floor
  • The lift car is 114 cm deep and 130 cm wide
  • The door opens to 90 cm
  • The lift buttons are 97 cm from the floor
  • The buttons are backlit and tactile
  • The lift car has a handrail on the wall under the control buttons

Tower Lift - Platform Lift

  • This lift gives access from the Crypt café up to the second floor
  • The lift call button is 96 cm from the floor
  • The lift car is 150 cm deep and 103 cm wide
  • The manual door opens to 90 cm
  • The lift buttons are 90 cm from the floor
  • The buttons are backlit and tactile
  • The lift car has a handrail on the wall under the control buttons

Atrium Lift - Platform Lift

  • This lift gives access to Chapel Hall and Old Hall
  • The lift call button is 97 cm from the floor
  • The lift car is 157 cm deep and 106 cm wide
  • The manual door opens to 92 cm
  • The lift buttons are between 96 and 106 cm from the floor
  • The buttons are backlit and tactile
  • This lift has a handrail on the wall under the control buttons

Please click on the thumbnails below to enlarge

The college has several different building styles and staircases. Some are older than others and some are more accessible than others. Some have contrasting edges and handrails but not all of them do.
The following areas can be reached without having to use stairs or a lift:

  • Accessible bedroom staircase E
  • Dining hall
  • Crypt café
  • JCR
  • MCR
  • Old Bar
  • MB 1
  • Garden Building Seminar Rooms
  • Garden Building Laundry

The images below show examples of stairs around the college

As you would expect Mansfield College has buildings of various different ages and therefore a variety of different doors.
There are powered doors in the following locations:

  • Main Building
  • Atrium

Some of the doors in the college are heavy and some people may need assistance. Some of the doors have door knobs and some are opened by using keys.
The images below show examples of doors around the college

Please click on the thumbnails below to enlarge

Quad

  • There is level access to the footpath around the Quad
  • The surface is resin bonded gravel
  • There is sloped access from the front of the John Marsh building to Garden Building
  • There is sloped access from the Quad to the Hands Building
  • There is sloped access from the Quad to the Atrium
  • The grass is surrounded by a metal upstand

The Quad has the following:

  • Dining Hall
  • Crypt Café
  • JCR
  • MCR
  • Library
  • Seminar Rooms
  • Accommodation
  • Lecture Theatre

Ablethorpe Building

  • There is level access to this area
  • The surface is paved

Please click on the thumbnails below to enlarge

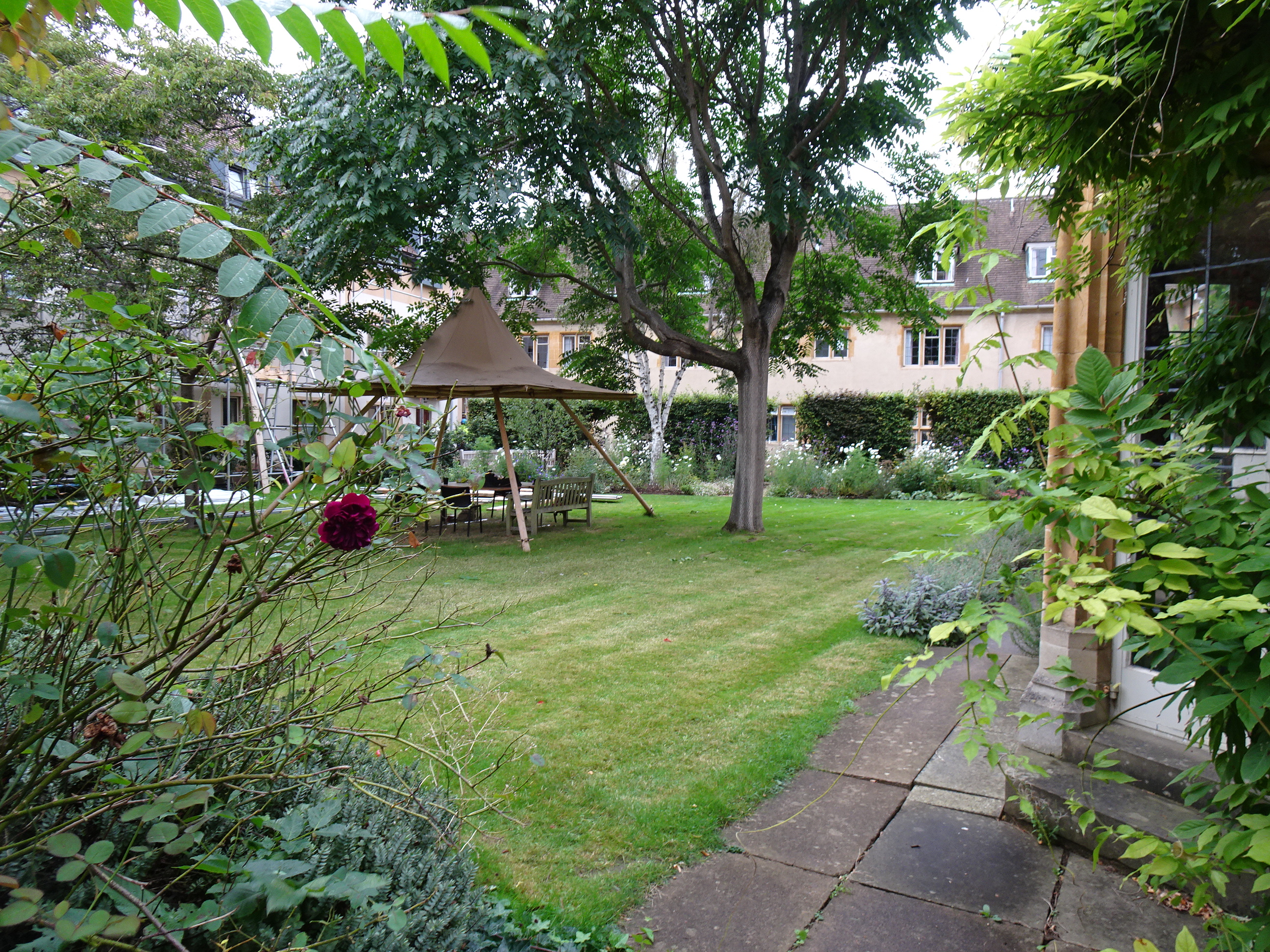

Legacy Garden

  • This garden can be reached by using the slope in front of staircase A
  • There is then level access around the edge of the garden
  • There is also level access from Mansfield Road next to the guest room
  • Part of the path is resin bonded gravel
  • Most of the surface is paved

The Legacy Garden has the following:

  • Accommodation

Please click on the thumbnails below to enlarge

Access
The libraries can only be reached by using stairs. The librarians will access books for anyone unable to manage the stairs

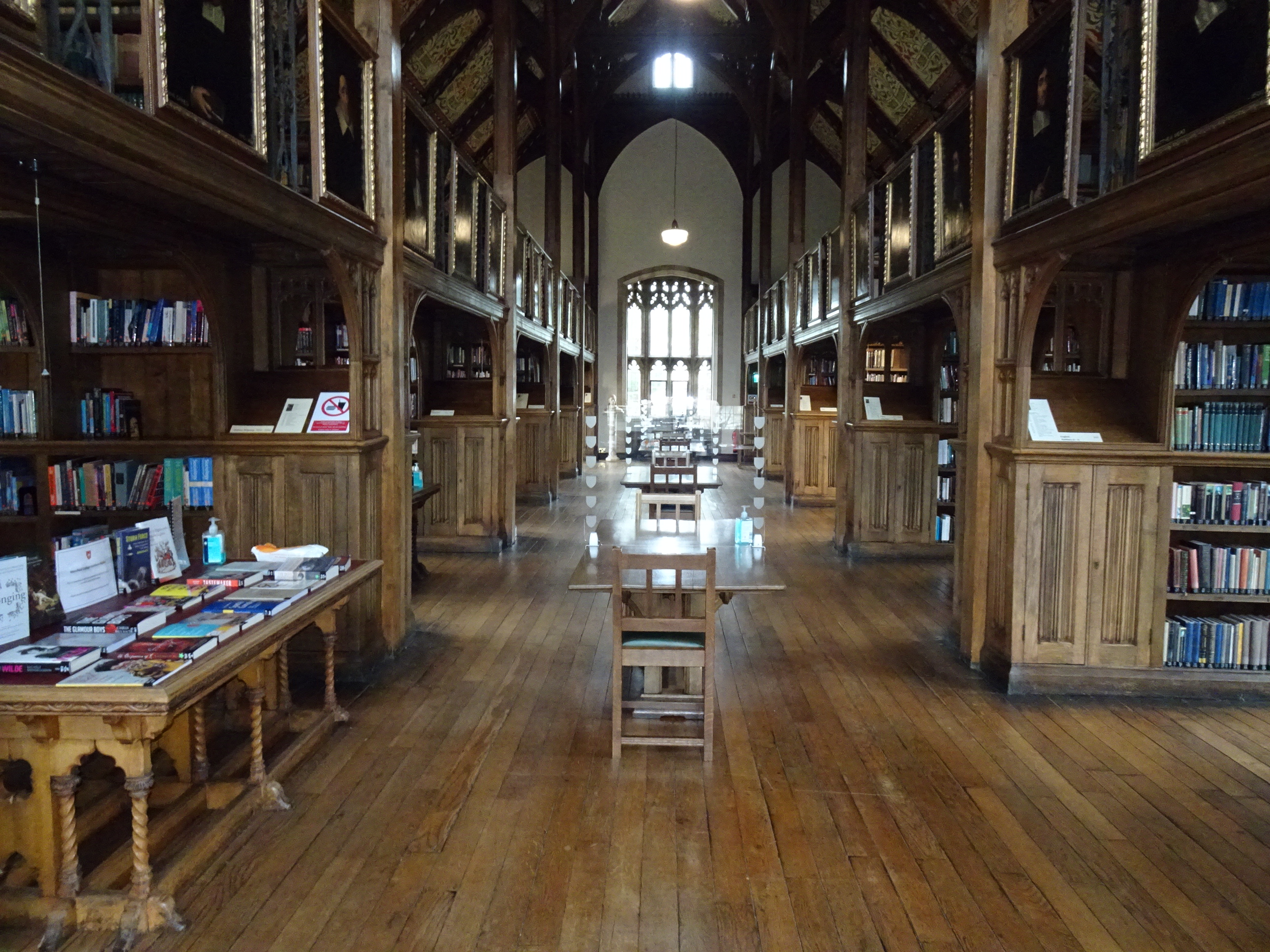

Main Library

  • The double doors open to 60 cm each
  • The access control is 140 cm from the floor
  • The door handle is 145 cm from the floor
  • The book issue desk is 72 cm from the floor
  • The underside of the tables is 69 cm from the floor

PPE Library

  • The double doors each open to 54 cm
  • The access control is 140 cm from the floor
  • The Yale lock is 135 cm from the floor
  • The underside of the desks is 72 cm to the floor

Law Library

  • The double doors each open to 54 cm
  • The access control is 140 cm from the floor
  • The Yale lock is 135 cm from the floor
  • The underside of the desks is 70 cm to the floor

Theology Library

  • The double doors each open to 54 cm
  • The access control is 140 cm from the floor
  • The book issue desk is 76 cm from the floor
  • The underside of the tables is 66 cm to the floor

The Library has the following study aids available:

  • Three adjustable height desks and chairs
  • Coloured acetates
  • Book stands
  • Ear plugs

Please click on the thumbnails below to enlarge

Main Building - Access

  • There is level access from the Main Building powered door to Old Bar and MB 1
  • Old Hall is reached by using stairs or the Atrium platform lift
  • Old Hall can also be reached by using the Tower platform lift and the route through the SCR
  • The Tower room can only be reached by using stairs or the Tower platform lift

Old Bar

  • This room is on the ground floor
  • The door opens to 93 cm
  • The door handle is 80 cm from floor
  • The underside of the table is 63 cm from the floor
  • There is space to manoeuvre a wheelchair

MB 1

  • This room is on the ground floor
  • The door opens to 90 cm
  • The door handle is 82 cm from the floor
  • The underside of the table is 63 cm from the floor
  • There is space to manoeuvre a wheelchair in this room

Old Hall

  • This room is on the first floor
  • The door opens to 106 cm
  • The underside of the tables is 69 cm from the floor
  • There is space to manoeuvre a wheelchair in this room

Tower Room

  • This room is on the second floor
  • The door opens to 93 cm
  • The handle is 85 cm from the floor
  • The underside of the tables are 68 cm and 65 cm from the floor

Garden Building - Access

  • This building is reached by using stairs or the slope in front of the John Marsh Building
  • There is level access inside the building to the seminar rooms
  • The door in the corridor to the seminar rooms opens to 88 cm

Seminar Room East

  • The door opens to 86 cm
  • The access control is 82 cm from the floor
  • The underside of the tables is 68 cm from the floor
  • There is space to manoeuvre a wheelchair in this room

Seminar Room West

  • The door opens to 89 cm
  • The key is 83 cm from the floor
  • The underside of the tables is 68 cm from floor
  • There is space to manoeuvre a wheelchair in this room

Please click on the thumbnails below to enlarge

Information about the Sir Joseph Hotung Auditorium is on the Access Guide page for the Bonavera Institute for Human Rights. Please use the link below for more information:
Bonavera Institute for Human Rights Access Guide Page

Access
Chapel Hall can be reached either through the atrium using the platform lift or using a level entrance from the Quad.

  • There is sloped access to the Atrium from the Quad
  • The door to the Atrium is powered
  • This door opens to 85 cm
  • The access control is 106 cm from the floor
  • The exit push button is 107 cm from the floor
  • The door from the Quad opens to 85 cm
  • This door can be held open
  • The inner door opens to 84 cm
  • This door is quite heavy

Chapel Hall

  • The door from the atrium into Chapel Hall opens to 80 cm
  • This door is open during mealtimes
  • The passage from the atrium hall door is 85 cm wide
  • The underside of the tables is 72 cm from the floor
  • There is space to manoeuvre a wheelchair in this room

Servery

  • The servery counters are 90 cm from the floor
  • The servery is 120 cm wide
  • The payment machine is 110 cm from the floor
  • Staff are happy to assist anyone needing help

Please click on the thumbnails below to enlarge

The JCR is  in the Main Building.

  • There is level access from the main building entrance
  • The double doors each open to 62 cm
  • The key is 80 cm from the floor
  • The underside of the tables is 69 cm from the floor
  • There is space to manoeuvre a wheelchair in this room

Please click on the thumbnails below to enlarge

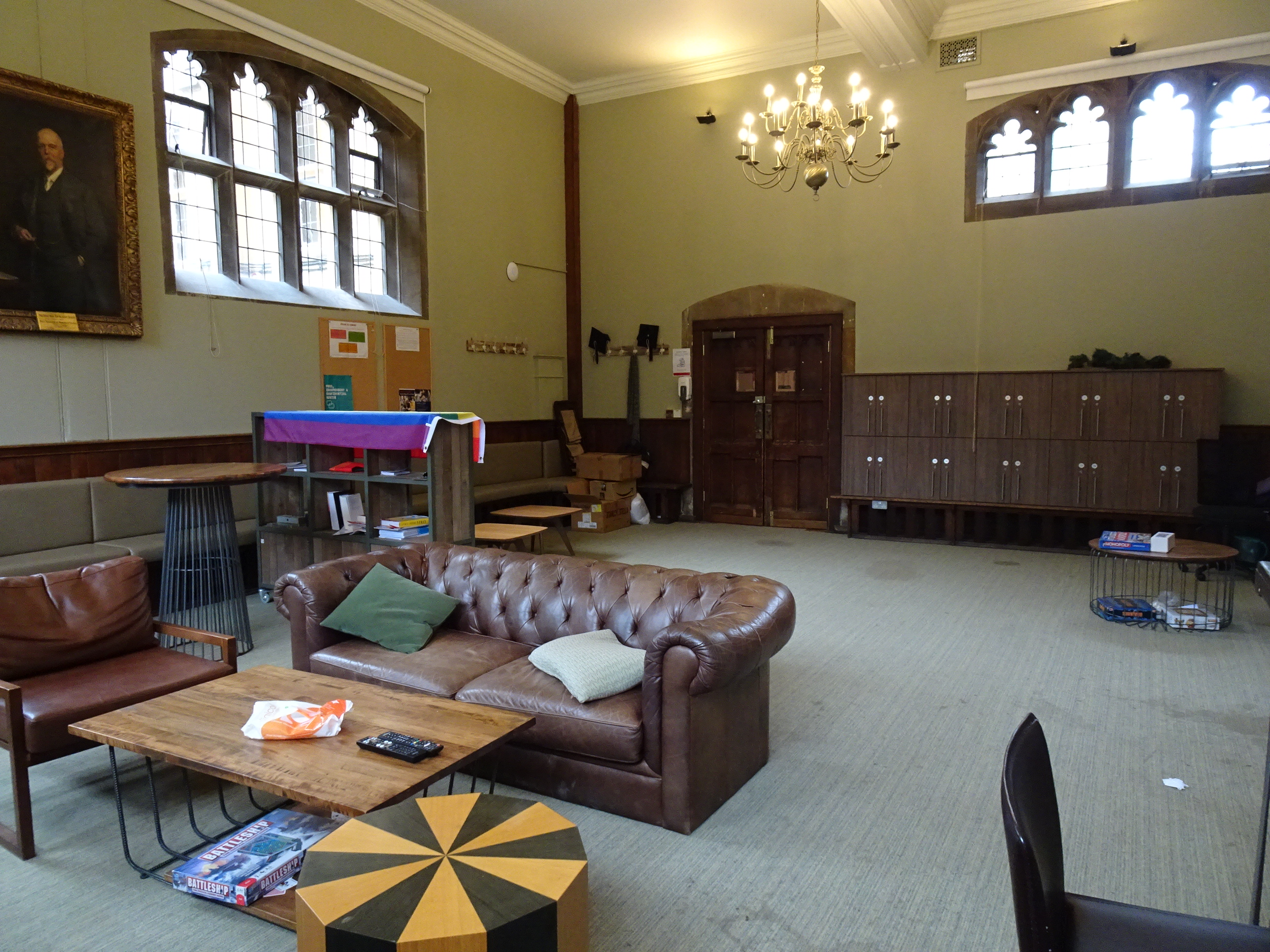

The MCR is in the main building.

  • There is level access from the main building entrance
  • The double doors each open to 64 cm
  • The key is 132 cm from the floor
  • The underside of the lower tables are 55 cm and 45 cm from the floor
  • The underside of the high tables are 108 cm and 102 cm from the floor
  • The tea and coffee counter is 93 cm from the floor
  • There is space to manoeuvre a wheelchair in this room

MCR Kitchenette

  • The lobby door opens to 90 cm
  • The kitchen door opens to 68 cm
  • The countertop is 93 cm from the floor
  • There is very little room to manoeuvre in this kitchenette

Please click on the thumbnails below to enlarge

  • The Ablethorpe common room is reached directly from the quad
  • There is a step up to the common room door which is 19 cm high
  • The double doors each open to 45 cm

Please click on the thumbnails below to enlarge

There are accessible bedrooms in the following locations:

  • Staircase E (1)
  • Hands Building (3)

Some of the bedrooms are older than others and so the features may vary in each room. They may not all meet current accessibility standards. All the accessible bedrooms have wet rooms. All the accessible bedrooms have room to manoeuvre a wheelchair.
The college has a portable vibrating pillow unit. There are quieter bedrooms which are in the Hands building.

Staircase E

  • There is level access from the building door
  • The bedroom door opens to 88 cm
  • The access control is 108 cm from the floor
  • The underside of the desk is 72 cm from the floor
  • The light switch is 115 cm from the floor
  • The bathroom measures 271 cm x 282 cm

Hands Building

  • The door opens to 78 cm
  • The access control is 100 cm from the floor
  • The underside of the desk is 68 cm from the floor
  • The light switch is 103 cm from the floor
  • The bathroom measures 241 cm x 270 cm

Please click on the thumbnails below to enlarge

Hands Building

  • The kitchen door opens to 77 cm
  • The lower countertop is 80 cm from the floor
  • The higher countertop is 90 cm from the floor
  • There are drawers and cupboards at different heights
  • There is a recess underneath the lower countertop
  • The base of the oven is 40 cm from the floor
  • The base of the microwave is 133 cm from the floor

Please click on the thumbnails below to enlarge

Café and bar

  • There is level entry from the atrium
  • The double doors each open to 45 cm
  • These doors can be held open
  • The countertop is 85 cm from the floor
  • The tray rack is 31 cm deep
  • The underside of the high tables is 100 cm from the floor
  • The underside of the low tables is 39 cm from the floor
  • The archways which provide access to the Tower lift lobby are 85 cm wide
  • There is space to manoeuvre a wheelchair in this room

Crypt terrace

  • The double doors leading onto the terrace each open to 52 cm
  • The terrace can also be reached by using the atrium door
  • The underside of the tables is 70 cm from the floor

Please click on the thumbnails below to enlarge

Main Building

  • This laundry can only be reached by using a number of steps
  • The washing machine handles are 60 cm from the floor
  • The tumble drier door handles are 170 mm from the floor

Garden Building

  • There is level entrance into the laundry
  • The door opens to 87 cm
  • The token slots are 105 cm from the floor
  • The washing machine handles are 60 cm from the floor
  • The tumble drier handles are 163 cm from the floor

Ablethorpe Building

  • There is a step up to the door which is 20 cm high
  • The access fob is 125 cm from the floor
  • The exit fob is 130 cm from the floor
  • The washing machine handles are 67 cm from the floor
  • The tumble drier handles are 163 cm from the floor

Please click on the thumbnails below to enlarge

There is a hearing support system in the Sir Joseph Hotung auditorium.

IMAGE GALLERY

Contact details


Mansfield College
Mansfield Road
Oxford
OX1 3TF

porter@mansfield.ox.ac.uk
01865 270999
www.mansfield.ox.ac.uk



Access enquiries


Helen Brooks
Registrar and Director of Admissions (Disability Coordinator)
registrar@mansfield.ox.ac.uk
01865 282920





Contact the Access Guide


If you have feedback, would like to make a comment, report out of date information or request a change, please use the link below:

Feedback form
